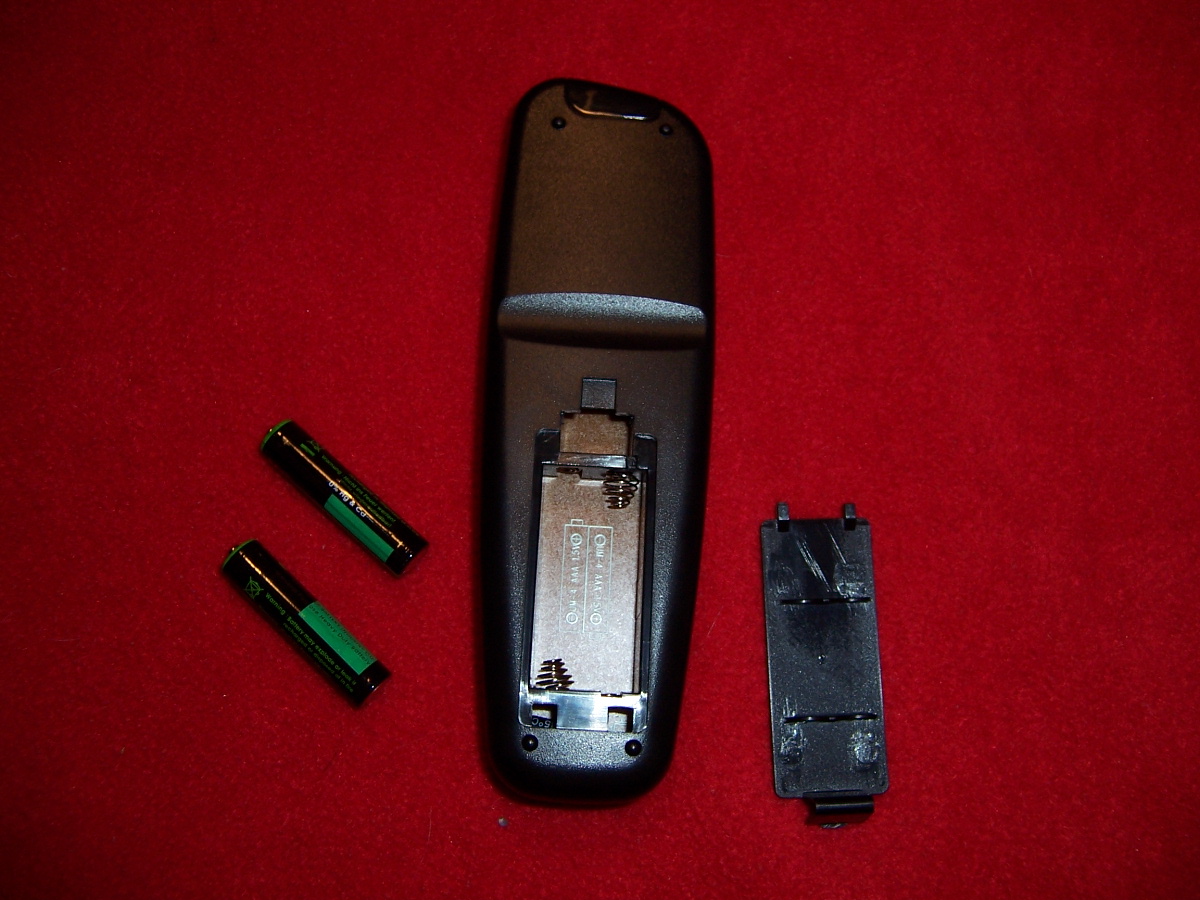

Step 1. Mount two AA cells under the rear cover of the remote control. Observe polarity
markings. The negative (flat) end of the battery goes to the spring terminal.
The positive (nipple) end of the battery goes to the flat terminal.
|
|

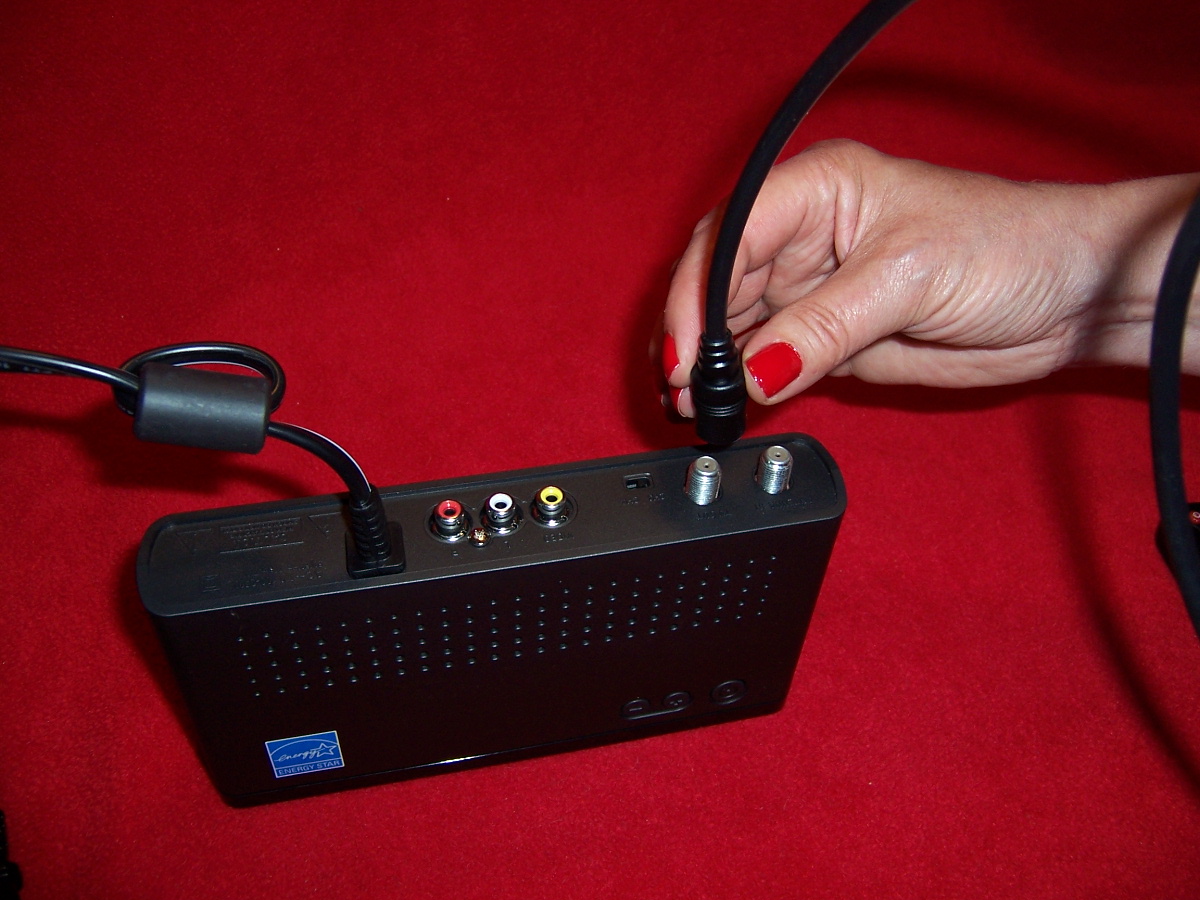

Step 2. Connect the RF Out coaxial cable. One end of the cable goes to the RF OUT jack.
This jack is on the back of the digital converter box. The other end of the cable goes to
the antenna input on your TV set.
|
|

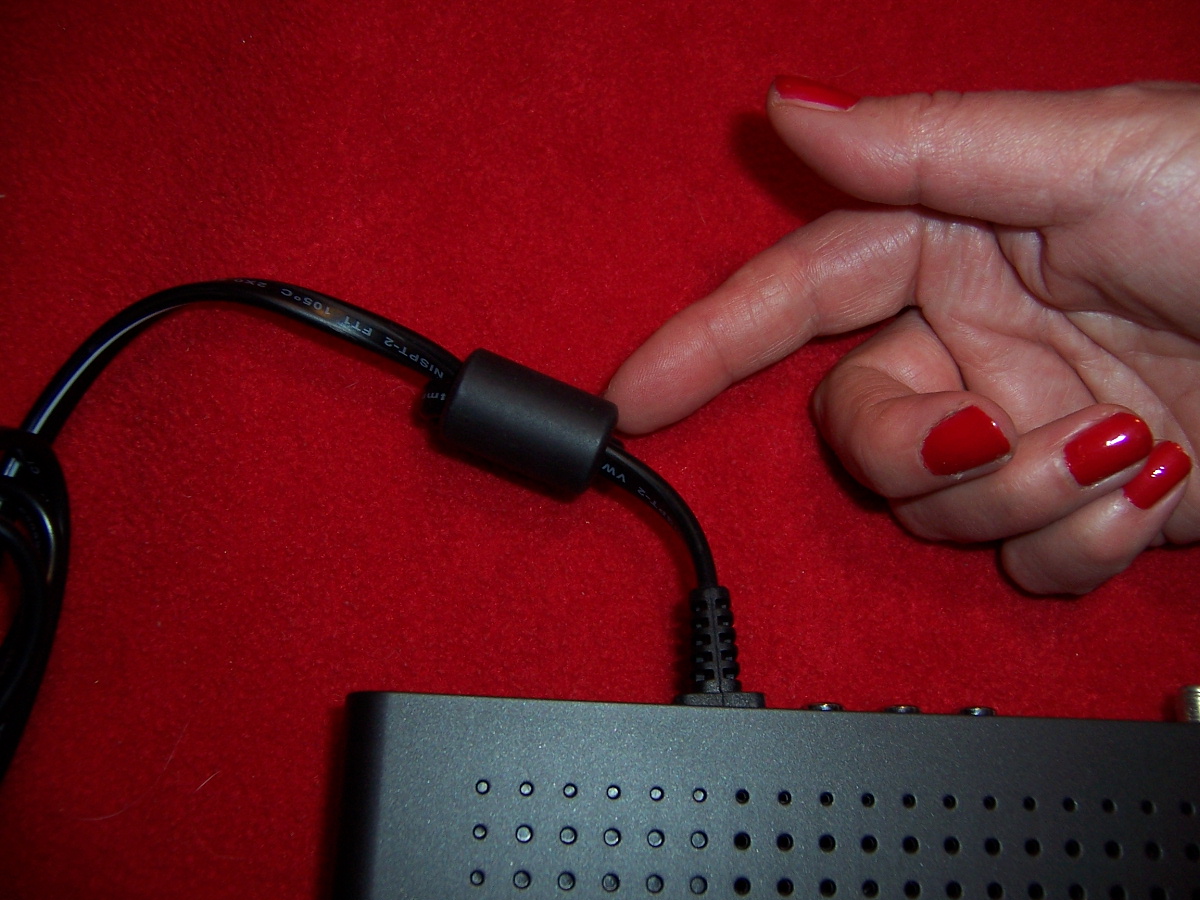

Step 3. Plug in the converter. The photo shows the power cord and RF interference filter.
|
|

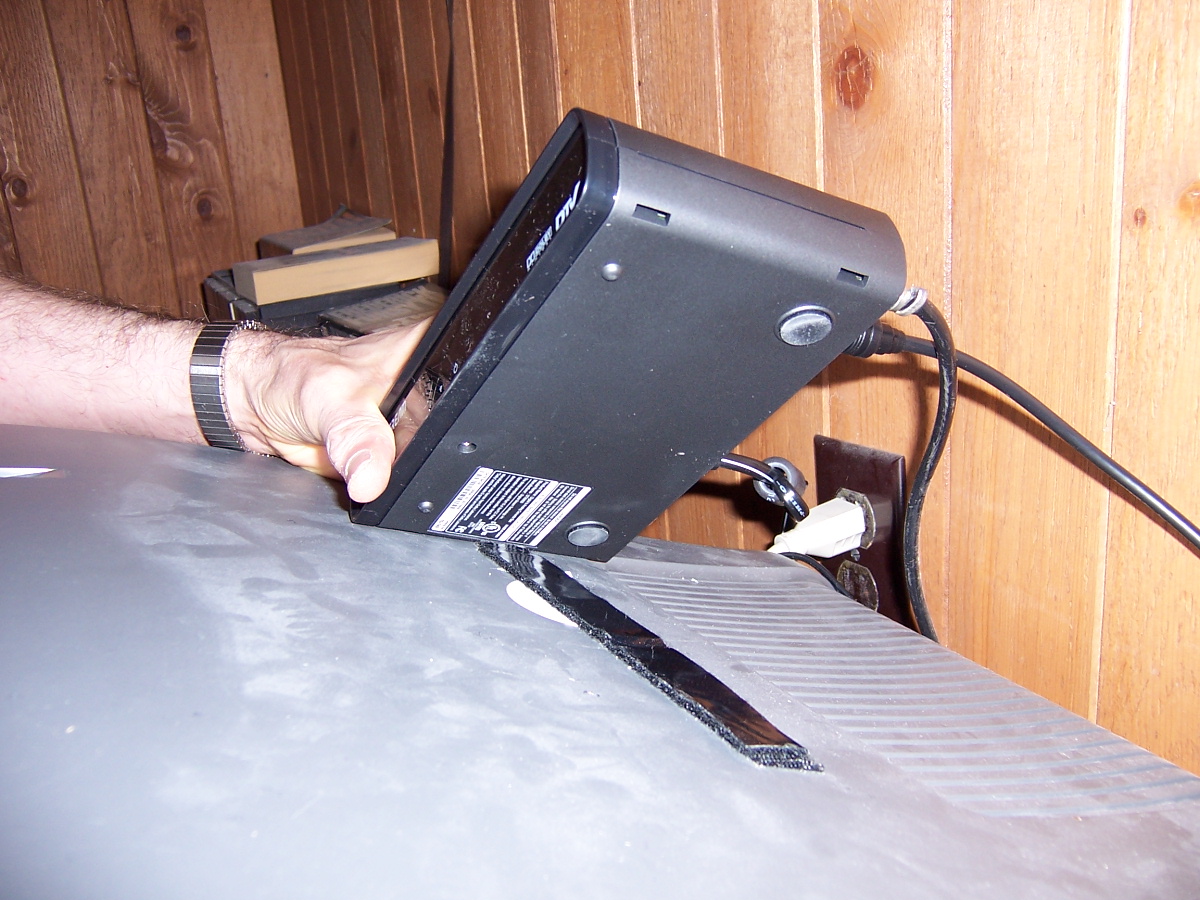

Step 4. Optional. Use a strip of stick-on Velcro® to secure your set-top
converter. Many drug, hardware and craft stores carry suitable Velcro® strips. The Velcro®
is particularly helpful on TVs with slanted tops. Also, it makes the converter a little tougher
for the cat to knock on the floor.
|
