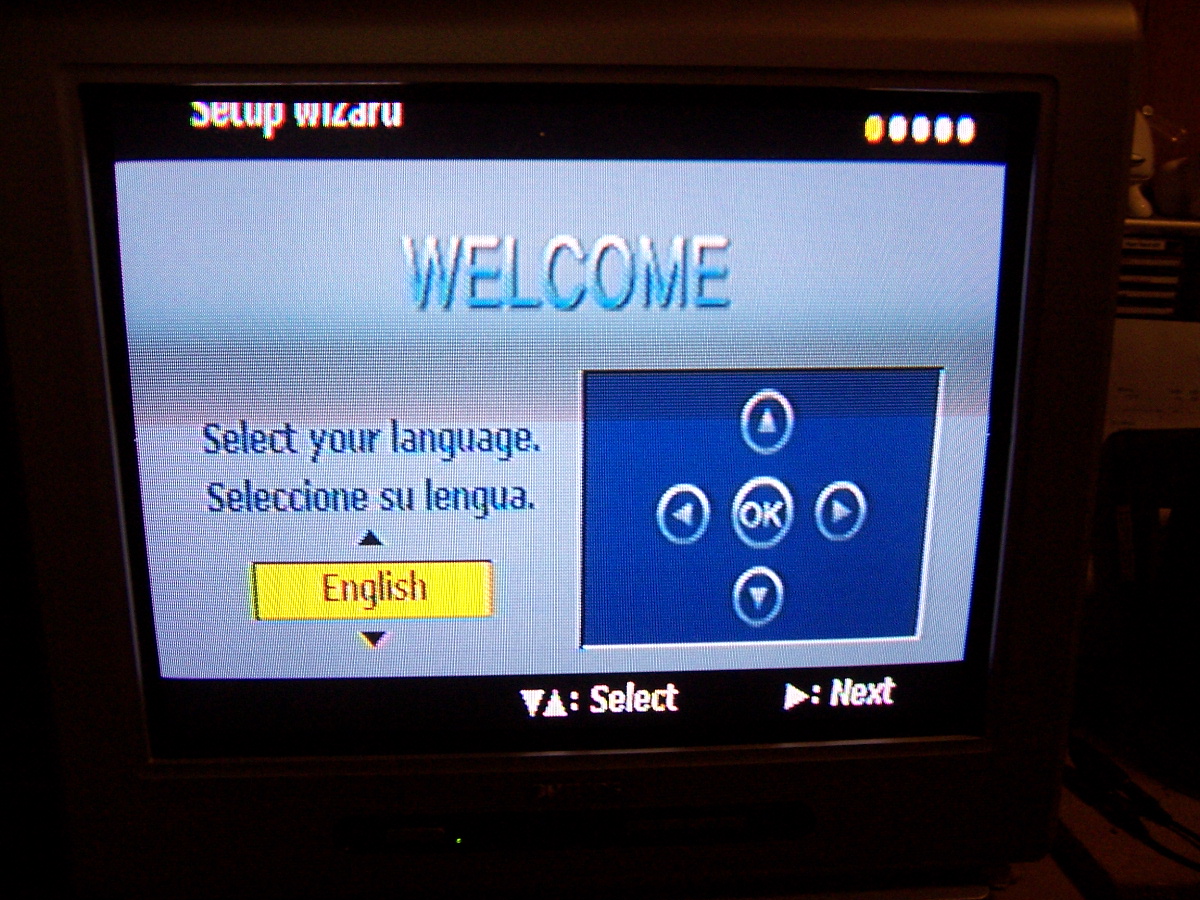

Step 1. Software Setup Mode. On first power-up, the unit enters Software Setup Mode. The photo depicts the Select Language screen. Pick the language in which you want to read instructions. Do this by repeatedly pressing the UP or the DOWN button. (Note: The moire patterns in the picture don't appear on your screen.)

Step 2. Connect the supplied coaxial cable between the antenna and the converter box's "ANTENNA IN" jack.

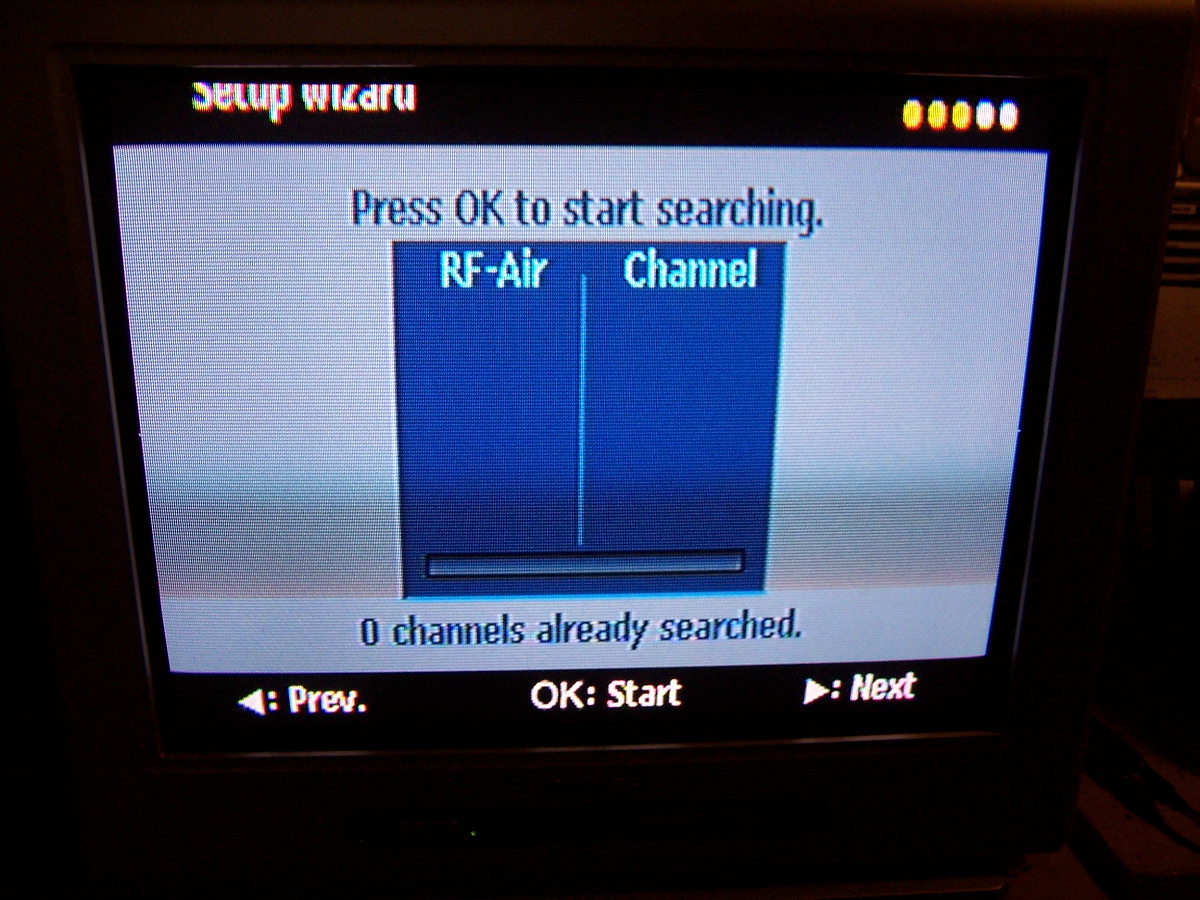

Step 3A. Press OK. The converter box starts searching for local digital signals.

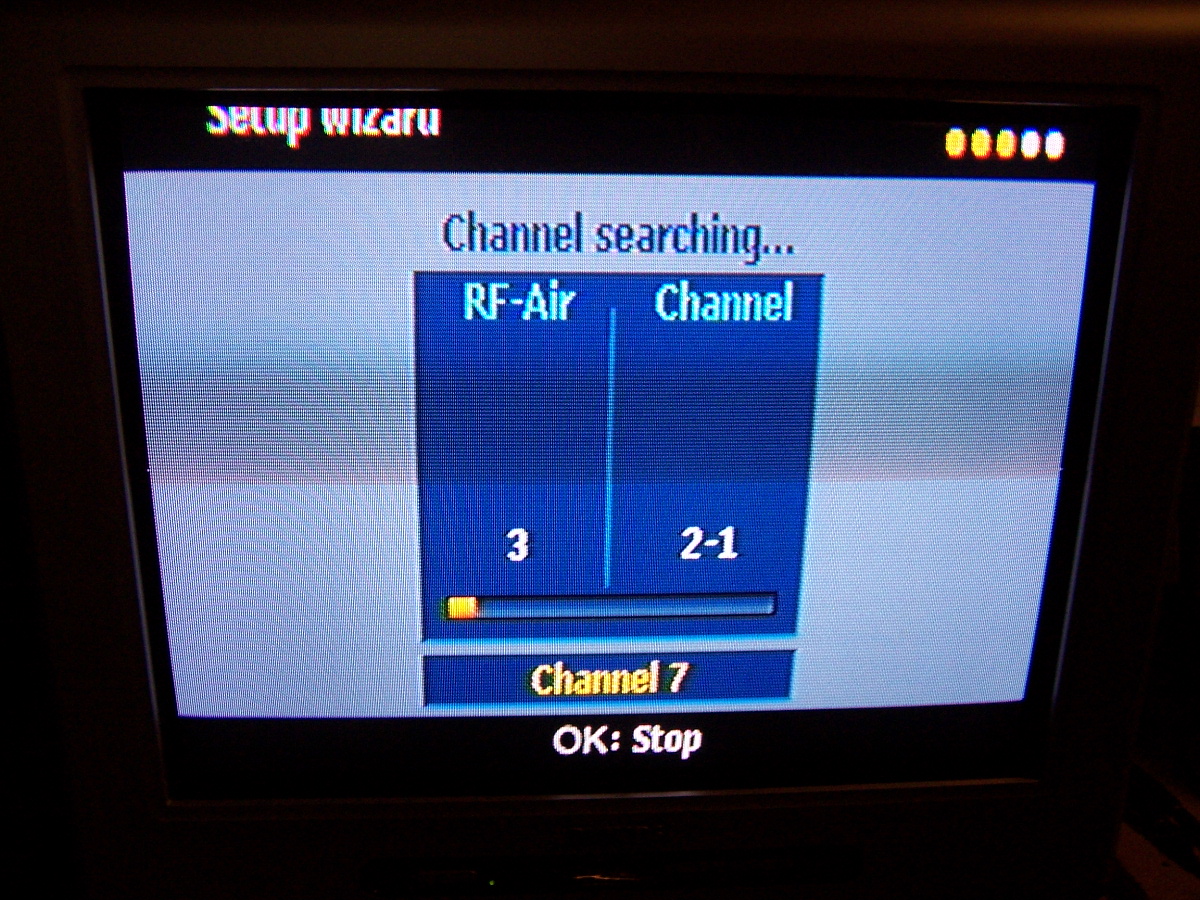

Step 3B. No required action. The picture shows that the box has found one local channel. The box is checking for a digital signal on RF Channel 7. Note that the transmitting channel appears on the left. The displayed channel appears on the right. For example, Digital Stream displays Channel 27 (549.25 MHz, UHF) as Channel 26-6.

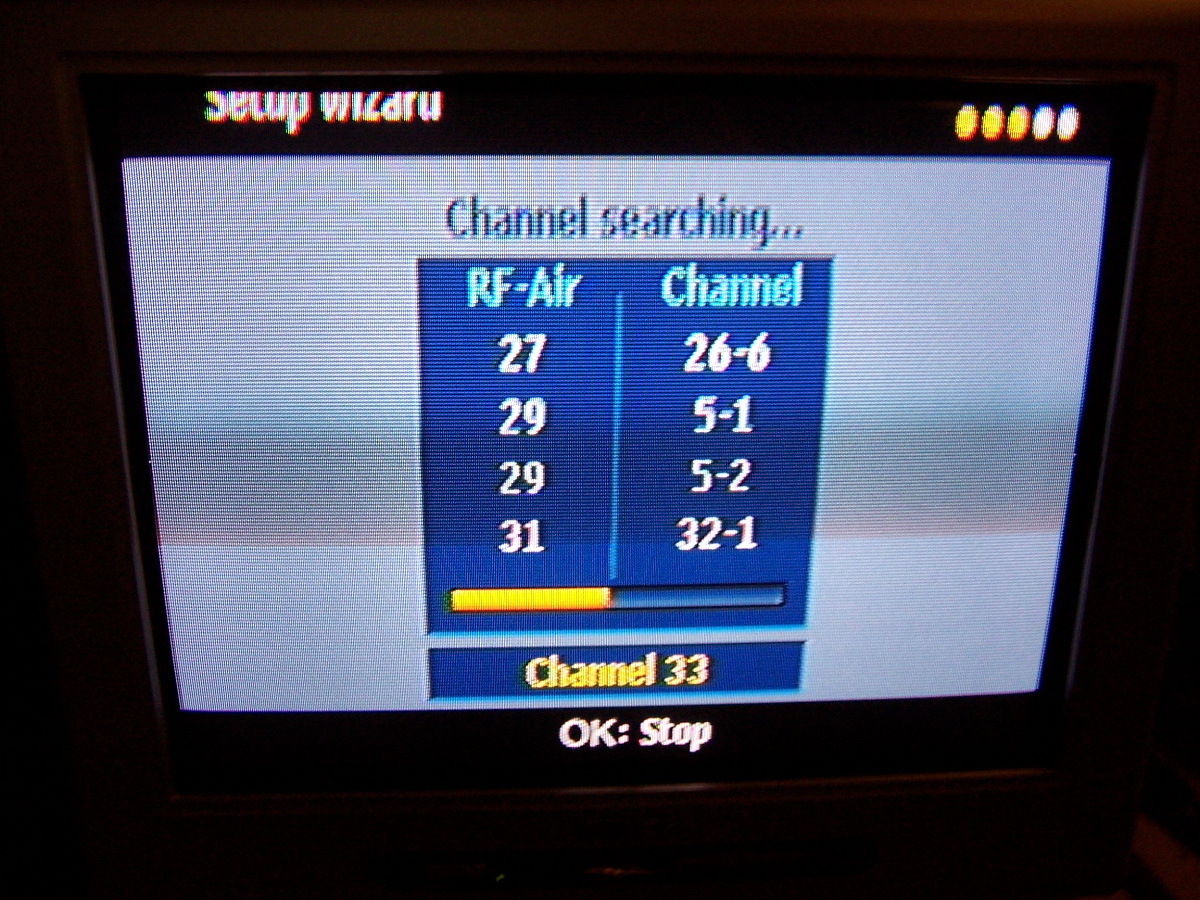

Step 3C. No required action. The picture shows that the box has found four local channels. The box is checking for a digital signal on RF Channel 33.

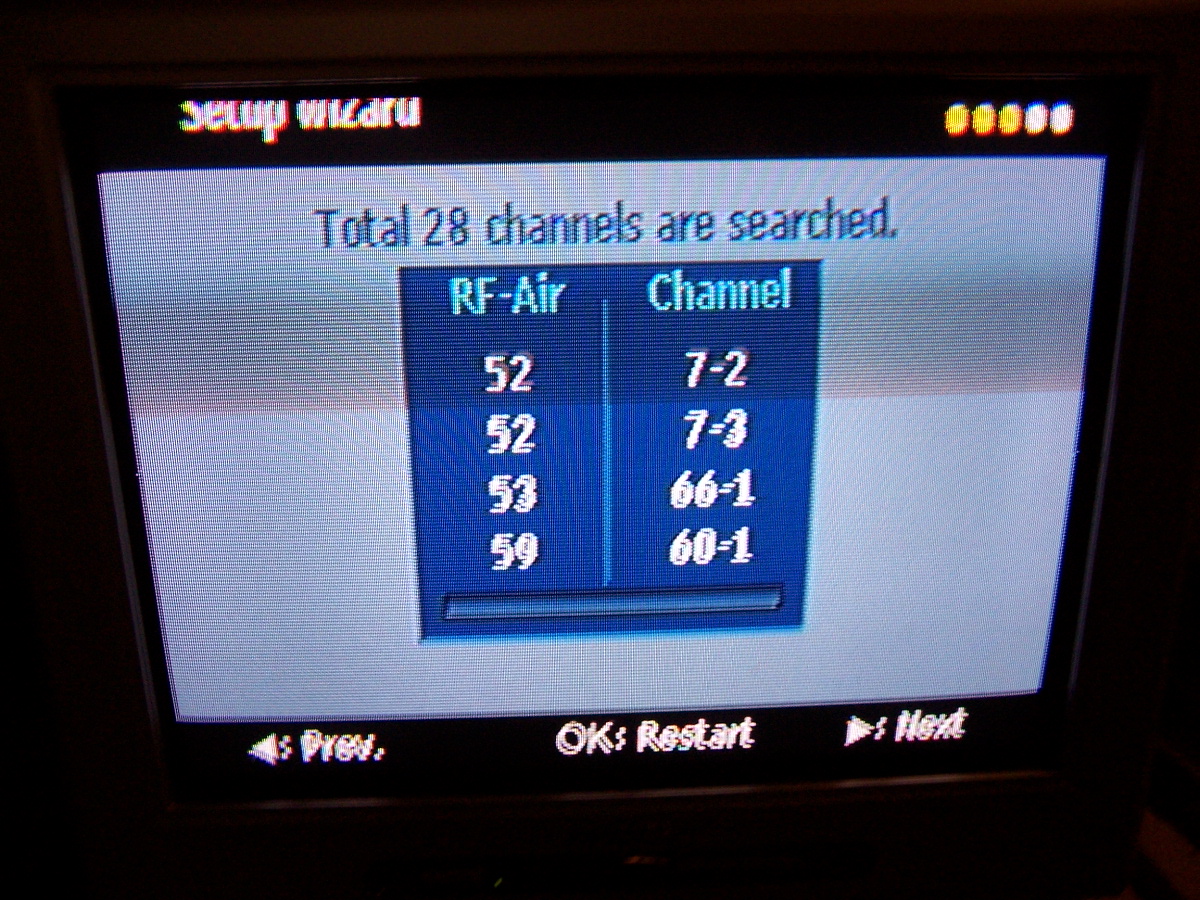

Step 3D. No required action. Picture shows that TV has now found 28 local channels.

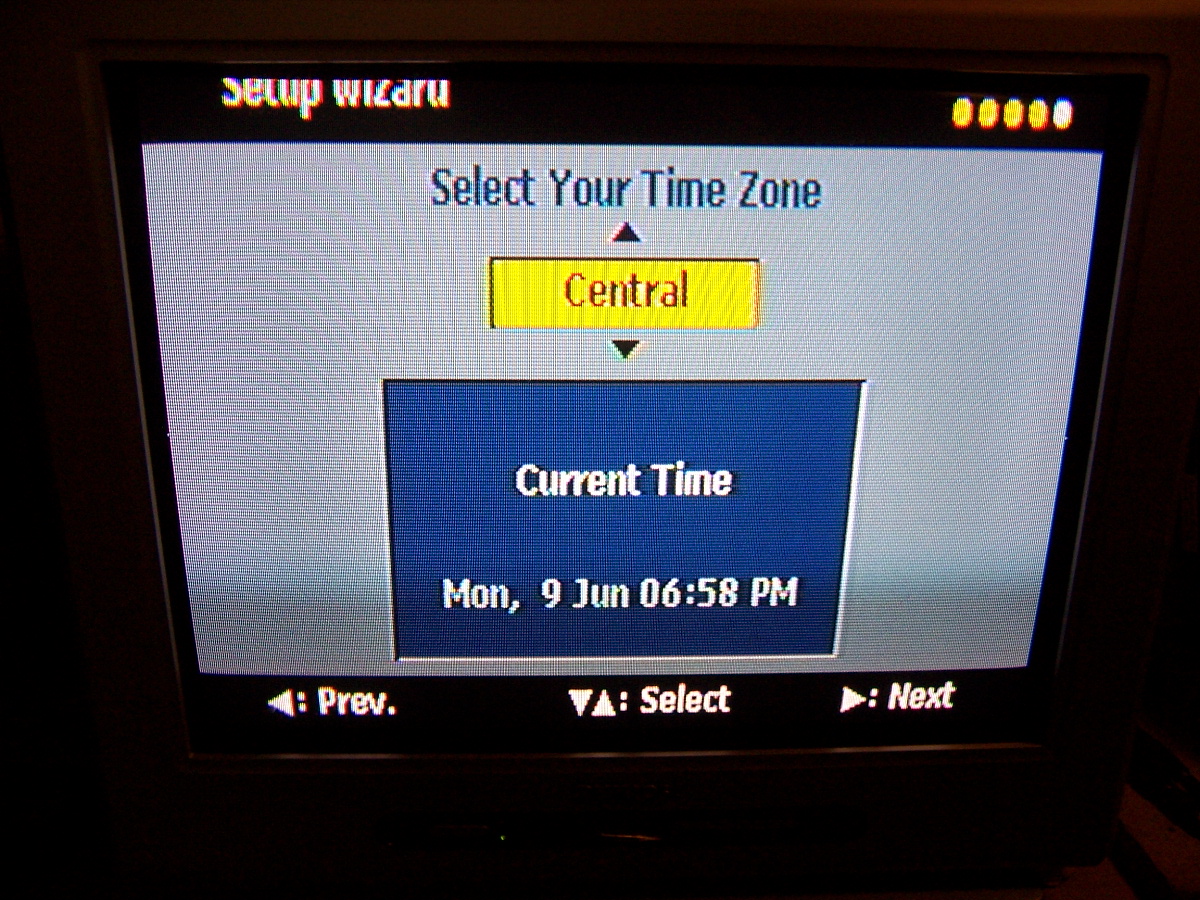

Step 4. Pick your time zone by pressing the UP or DOWN arrow buttons.

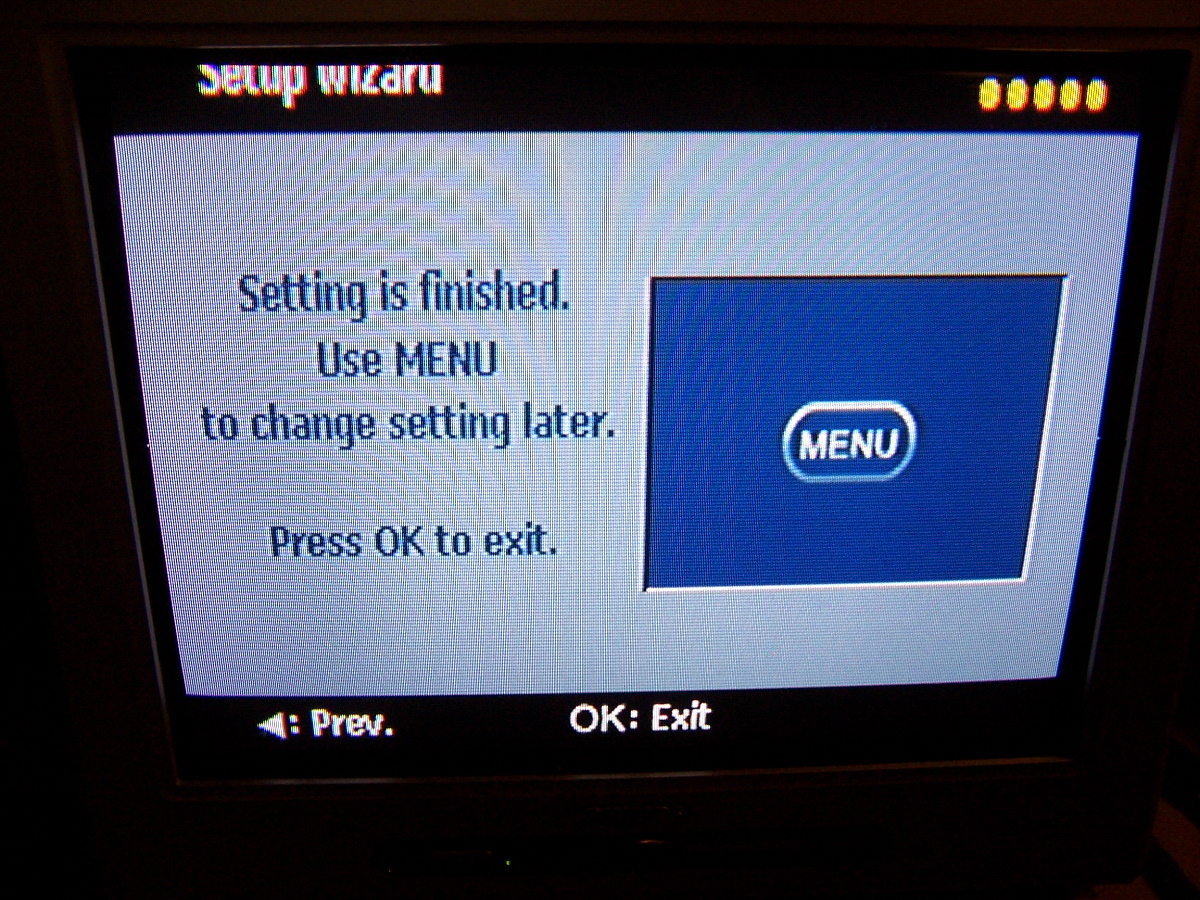

Step 5. Exit to TV Mode by pressing OK. You're done!
